TH4 Adjustable Rib Seam Solar Panel Mounting Kit – IBR Metal Roof Sheeting
The TH4 Adjustable Rib Seam Solar Panel Mounting Kit is a heavy-duty, rib-mount system designed specifically for IBR metal roof sheeting in South Africa. Engineered for strength, precision, and long-term durability, this complete kit enables fast, safe, and compliant solar installations while protecting roof sheeting and delivering a clean, professional finish.
Ideal for residential, commercial, and industrial solar projects, the TH4 system features premium materials, including Shot Blast Surface Finished Grade 304 Stainless Steel roof hooks and Natural Anodised T5-6005 Aluminium rails. Its engineered mounting geometry ensures secure panel anchoring, precise rail alignment, and exceptional structural performance, making it the trusted choice for DIY enthusiasts and professional solar installers.
Key Benefits
- Fully adjustable roof hook design – Engineered to accommodate rib width variations across different IBR metal roof sheet manufacturers, ensuring accurate roof hook positioning, correct load transfer, and precise rail alignment
- Specifically engineered for IBR metal roof sheeting
- Complete kit – includes all hardware and components for portrait orientation and side-by-side solar panel installation
- Compatible with 60-cell and 72-cell solar panels
- Cost-effective installation – superior structural integrity reduces the number of components while providing long-term durability
- Premium materials – Shot blast surface finished grade 304 stainless steel roof hooks and T5-6005 heat-treated aluminium rails
- High-quality hardware – stainless steel & aluminium Grade 304/A2-70
- Wind rating: 60 m/s (216 km/h) – built to withstand extreme South African wind conditions
- Ideal for DIY enthusiasts and professional solar installers

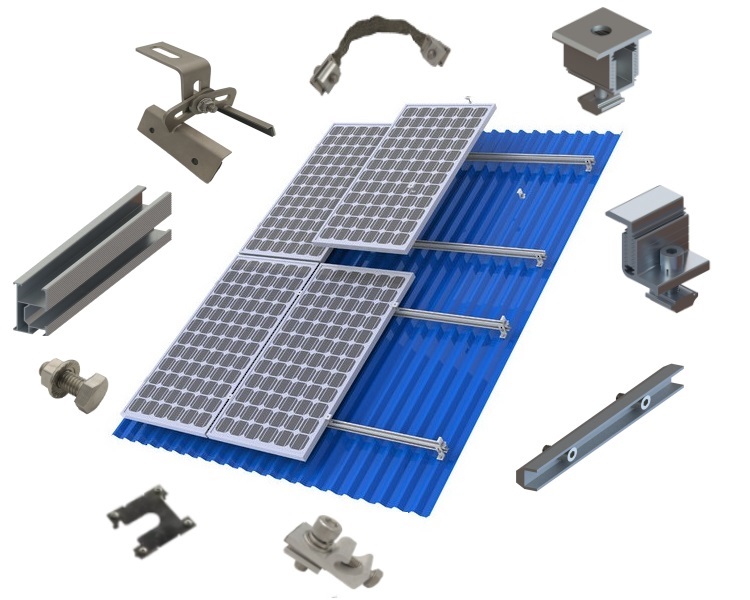

What’s Included in the Kit
- Fully Adjustable TH4 rib mount roof hooks (Shot blast surface finished grade 304 stainless steel) – for secure anchoring
- Hex bolt & nut sets (Grade 304 stainless steel) – rail mount fastener
- Solar rails (T5-6005 aluminium) – 2370mm and/or 1185mm depending on kit size
- Splice bars (T5-6005 aluminium) – included for 3-panel kits and larger
- Adjustable end clamps (T5-6005 aluminium) – secure panel edges
- Adjustable mid clamps (T5-6005 aluminium) – maintain precise spacing
- Solar earth washers (Grade 304 stainless steel) – reliable grounding
- Solar rail earth lugs (Grade 304 stainless steel & T5-6005 aluminium) – ensure electrical safety
Technical Specifications
| Specification | Details |
|---|---|
| Roof Type | Ribbed metal roof sheeting (IBR profile – mechanical fastening required) |
| Mount Type | Rib mount clamp system |
| Roof Attachment Method | Mechanical rib clamping with through-fastening into roof structure (roof penetration required) |
| Clamp Compatibility | Suitable for IBR profile roof sheeting only. Adjustable design accommodates rib width variations across different manufacturers for precise alignment. |
| Solar Rail Compatibility | Fully compatible with R44 Natural Anodised T5-6005 Aluminium Solar Mounting Rails |
| Material – Clamp Body | Shot-blast finished Grade 304 stainless steel, supplied with integrated weatherproof EPDM base pads |
| Material – Fasteners | Grade 304 (A2-70) stainless steel fasteners with T5-6005 aluminium interface components |
| Corrosion Resistance | Engineered for coastal and high-corrosion environments when installed in accordance with specification |
| Application | Residential, commercial, and industrial solar PV installations |
| Wind Rating | Up to 60 m/s (216 km/h), subject to site-specific engineering design and fixing layout |
| Warranty | 10 years |
Installation Overview
- Position the Clamp: Align the TH4 fully adjustable rib-mount clamp over the roof rib, ensuring correct placement for optimal load distribution.
- Secure the Clamp: Secure the clamp to the rib using the supplied stainless steel fasteners – roof piercing required.
- Install the Rails: Fix the compatible aluminium solar rails (R44) onto the TH4 roof hook using the included hardware, ensuring precise alignment.
- Mount Solar Panels: Place the solar panels onto the rails in portrait orientation, and secure according to manufacturer guidelines.
For full step-by-step guidance, see our Clay & Concrete Tiled Roof Installation Guide.
Ideal Applications
- IBR Metal Roofs (including width variation) – secure, mounting that preserves roof integrity
- Residential, Commercial & Industrial Solar PV – engineered for reliable long-term performance
- DIY Solar Projects – simple, fast installation for home solar enthusiasts
- Professional Solar Contractors – dependable, compliant solution for large-scale installations
- New or Upgraded Solar Systems – fully compatible with existing rails or new solar arrays
Frequently Asked Questions
Is the IBR kit compatible with all solar panels?
Yes. The IBR mount works with standard 60-cell and 72-cell solar panels with a thickness of 30mm–45mm, widely used in South Africa.
Can this be installed on tiled roofs?
No. The IBR kit is specifically designed for ribbed seam metal roofs. For clay or concrete tiled roofs, see our Tiled Roof Solutions category.
Is the IBR kit suitable for coastal or high-humidity areas?
Yes. All clamps and fasteners are made from shot blast surface finished grade 304 stainless steel, T5-6005 natural anodised aluminium and grade 304/A2-70 stainless steel (fasteners), providing excellent corrosion resistance for coastal and high-humidity installations.
Delivery & Ordering
- Fast Nationwide Delivery – available across South Africa for residential, commercial, and industrial solar projects
- Bulk & Project Pricing – cost savings for multiple TCB18 kits on larger solar installations
- Trade & Installer Accounts – tailored support, pricing, and dedicated service for professional solar contractors
